ATM lab TOPO
an somebody show me how to create this lab ? is it possible?
——————————–

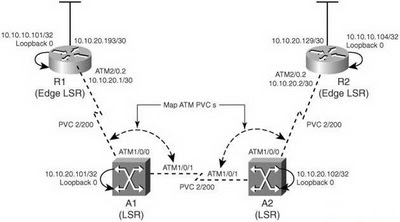

this is sample from book.
can you show me example lab of connecting R1 to A1? b/c i havent seen any sample connecting router to ATM.
i can careless about loopback. The loopback on router are advertise network from R1 to R2 thro ATM over PVC
Configuration Steps for Frame-Mode MPLS Over RFC 2684 Routed PVC
The steps to configure RFC 2684 bridged encapsulation over MPLS on R1 and R2 are as follows. Ensure that IP addresses are preconfigured on R1 and R2, as illustrated in Figure 2-4:
Step 1. Follow the steps shown in the “Basic Frame-Mode MPLS Configuration Steps” section. These steps are the same for frame-mode MPLS over RFC 2684 routed PVC. Follow those steps to configure frame-mode MPLS on R1 and R2:
