dynamips lab:CCIE Practice LAB Dynamips
K guys first I would like to thank you on the feedback it is much appreciated that some one takes the time to respond to you on your time and effort.

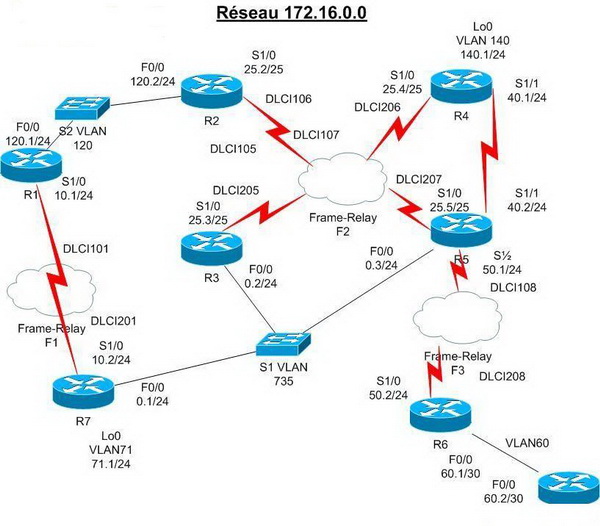

So I would like to add another .net topology that is smaller but very useful for IP Services practice like Proxy Arp, NAT, HSRP and all the things you want to test that do not require a full lab of 13 routers.
the lab was prepared from the IEWBv4 IPServices book under Advanced Technologies also to people that do not have this Work Book it can be very handy as it is not very hard to figure the structure of the lab.
And work you way trough all kind of scenarios. So
ghostios=false
autostart=false
[localhost:7200]
workingdir = /home/dynagen/working
ram = 256
disk0 = 0
disk1 = 0
[[3640]]
image = /home/dynagen/images/c3640-jk9s-mz.124-8.image
#
ram = 128
disk0 = 0
disk1 = 0
# Choose an idlepc value from the below
idlepc = 0×60420004
mmap = true
[[Router R1]]
model = 3640
# console = 2001
autostart = false
slot0 = NM-1FE-TX
slot1 = NM-4T
F0/0 = SW1 F1/1
cnfg = /home/dynagen/sample_labs/initial.configs/LABIPSER/iewb-rs.v4.LABIPSER.rack1r1.txt
[localhost:7206] # Talk to the 2nd dynamips process on port 7201
udp = 16000 # Change the base udp port to 11000 (the default is 10000)
workingdir = /home/dynagen/working
[[3640]]
image = /home/dynagen/images/c3640-jk9s-mz.124-8.image
#
ram = 128
disk0 = 0
disk1 = 0
# Choose an idlepc value from the below
idlepc = 0×60420004
mmap = true
[[Router R4]]
model = 3640
# console = 2004
autostart = false
slot0 = NM-1FE-TX
slot1 = NM-4T
F0/0 = SW1 F1/4
S1/0 = FRSW 4
S1/1 = R5 S1/1
cnfg = /home/dynagen/sample_labs/initial.configs/LABIPSER/iewb-rs.v4.LABIPSER.rack1r4.txt
[localhost:7205] # Talk to the 2nd dynamips process on port 7201
udp = 15000 # Change the base udp port to 11000 (the default is 10000)
workingdir = /home/dynagen/working
# workingdir = C:\Program Files\Dynamips\sample_labs\internetworkexpert\working
[[3640]]
#
# Specify 3640 IOS image on Windows here:
#image = C:\Program Files\Dynamips\images\c3640-jk9s-mz.124-8.image
#
# Specify 3640 IOS image on Linux here:
image = /home/dynagen/images/c3640-jk9s-mz.124-8.image
#
ram = 128
disk0 = 0
disk1 = 0
# Choose an idlepc value from the below
idlepc = 0×60420004
mmap = true
[[Router R5]]
model = 3640
# console = 2005
autostart = false
slot0 = NM-1FE-TX
slot1 = NM-4T
F0/0 = SW1 F1/5
S1/0 = FRSW 5
cnfg = /home/dynagen/sample_labs/initial.configs/LABIPSER/iewb-rs.v4.LABIPSER.rack1r5.txt
[localhost:7209] # Talk to the 2nd dynamips process on port 7201
udp = 19000 # Change the base udp port to 11000 (the default is 10000)
workingdir = /home/dynagen/working
[[3640]]
# Specify 3640 IOS image on Linux here:
image = /home/dynagen/images/c3640-jk9s-mz.124-8.image
#
ram = 128
disk0 = 0
disk1 = 0
# Choose an idlepc value from the below
idlepc = 0×60420004
mmap = true
[[Router R6]]
model = 3640
# console = 2006
autostart = false
slot0 = NM-1FE-TX
slot1 = NM-4T
F0/0 = SW1 F1/6
cnfg = /home/dynagen/sample_labs/initial.configs/LABIPSER/iewb-rs.v4.LABIPSER.rack1r6.txt
[localhost:7203] # Talk to the 2nd dynamips process on port 7201
udp = 13000 # Change the base udp port to 11000 (the default is 10000)
workingdir = /home/dynagen/working
[[3640]]
image = /home/dynagen/images/c3640-jk9s-mz.124-8.image
#
ram = 128
disk0 = 0
disk1 = 0
# Choose an idlepc value from the below
idlepc = 0×60420004
mmap = true
[[Router SW1]]
model = 3640
# console = 2007
autostart = false
slot1 = NM-16ESW
cnfg = /home/dynagen/sample_labs/initial.configs/LABIPSER/iewb-rs.v4.LABIPSER.rack1sw1.txt
[[FRSW FRSW]]
# R4 to FRSW
4:405 = 5:504
4:415 = 5:514
4:425 = 5:524
4:45 = 5:54
